IO-Link vs Modbus RTU: Device Layer vs Serial Bus (2026)

Ask an automation engineer whether IO-Link or Modbus RTU is the better protocol, and you're asking the wrong question. IO-Link connects one sensor to one master over a 20 m cable (IEC 61131-9). Modbus RTU links up to 247 slaves across a bus that runs 1200 m (Watlow), per the Modbus specification. They solve different problems at different layers of the stack.

On plenty of factory floors, they run side by side. I spec both protocols routinely: IO-Link masters at the sensor, Modbus RTU devices on the backbone. In the field, the choice usually comes down to distance and diagnostics, not which protocol wins outright. Our companion piece on whether IO-Link is a fieldbus covers why IO-Link sits below the network layer. This comparison goes one level further: distance, speed, diagnostics, wiring, and where each one actually belongs.

TL;DR: IO-Link and Modbus RTU aren't rivals, they're different layers. IO-Link is a deterministic, point-to-point sensor interface with rich diagnostics over a 20 m cable; Modbus RTU is a long-distance multidrop bus connecting up to 247 slaves over 1200 m (Watlow). Choose IO-Link for sensor diagnostics and fast commissioning. Choose Modbus RTU for long runs and cheap multidrop scale.

How Do IO-Link and Modbus RTU Compare at a Glance?

IO-Link and Modbus RTU differ most in topology and reach. IO-Link connects one device per master port over 20 m (ifm), while Modbus RTU multidrops up to 247 slaves across 1200 m of RS-485 cable (Watlow). The table below lines up wiring, speed, and diagnostics side by side.

Which Reaches Further and Connects More Devices?

Modbus RTU reaches further and connects more devices. A single RS-485 segment runs up to 1200 m at low baud and addresses 247 slaves (Watlow), while an IO-Link master port serves exactly one device over a maximum 20 m cable (ifm).

IO-Link's 20 m limit reflects a deliberate design choice. Point-to-point wiring keeps one cable tied to one device, with no shared bus to troubleshoot, consistent with its role as a device-layer interface, not a fieldbus. Each master module typically breaks out four to eight ports, so scale comes from adding modules rather than stretching one cable further.

Modbus RTU's multidrop bus was built for the opposite problem: connecting many simple devices cheaply on one pair of wires. Up to 32 unit loads share a segment without repeaters, and the 247-address range covers most plant networks (Watlow). In practice, few plants need all 247 addresses on one segment. IO-Link masters chain onto a fieldbus uplink to cover far more than 20 m of total footprint, just not on a single device cable.

Verdict: Modbus RTU wins on raw reach and node count; IO-Link wins on keeping each device's wiring simple and isolated.

Which Is Faster and More Deterministic?

IO-Link is faster and deterministic; Modbus RTU is not. A COM3 IO-Link connection cycles in as little as 400 microseconds, and wired IO-Link hubs run a process-data cycle around 2 ms (ISA; Balluff). Modbus RTU has no fixed cycle at all; response time depends on the master's polling queue and slave count.

IO-Link runs three fixed device data rates, and the master auto-detects which one each device uses (ifm; CoreTigo):

• COM1: 4.8 kbaud
• COM2: 38.4 kbaud
• COM3: 230.4 kbaud

Modbus RTU runs standard baud rates from 1,200 to 38,400, with 9600 and 19200 the most common in the field (Watlow; HMS Networks). Every device on the segment must be pre-set to the same fixed rate, since the protocol has no auto-negotiation.

Determinism matters most for fast discrete I/O and closed-loop control. A slow-changing tank level rarely needs a 400 microsecond update.

Verdict: IO-Link wins on speed and determinism; Modbus RTU's polling model was never built to compete on this axis.

Which Is Easier to Configure and Diagnose?

IO-Link is easier to configure and diagnose, because every compliant device ships a standardized IODD file that a master can read and auto-parameterize on the spot (ISA). Modbus RTU has no equivalent: every register map is manual, and diagnostics are limited to generic exception codes rather than device-specific detail.

An IODD file, searchable through the public IODDfinder database, tells the master a device's parameter names, units, and valid ranges with no manual mapping. Beyond configuration, IO-Link exposes a standardized device ID (vendor, device, serial, firmware) plus event history and condition-monitoring data like vibration, temperature, and operating hours (Balluff; ISA).

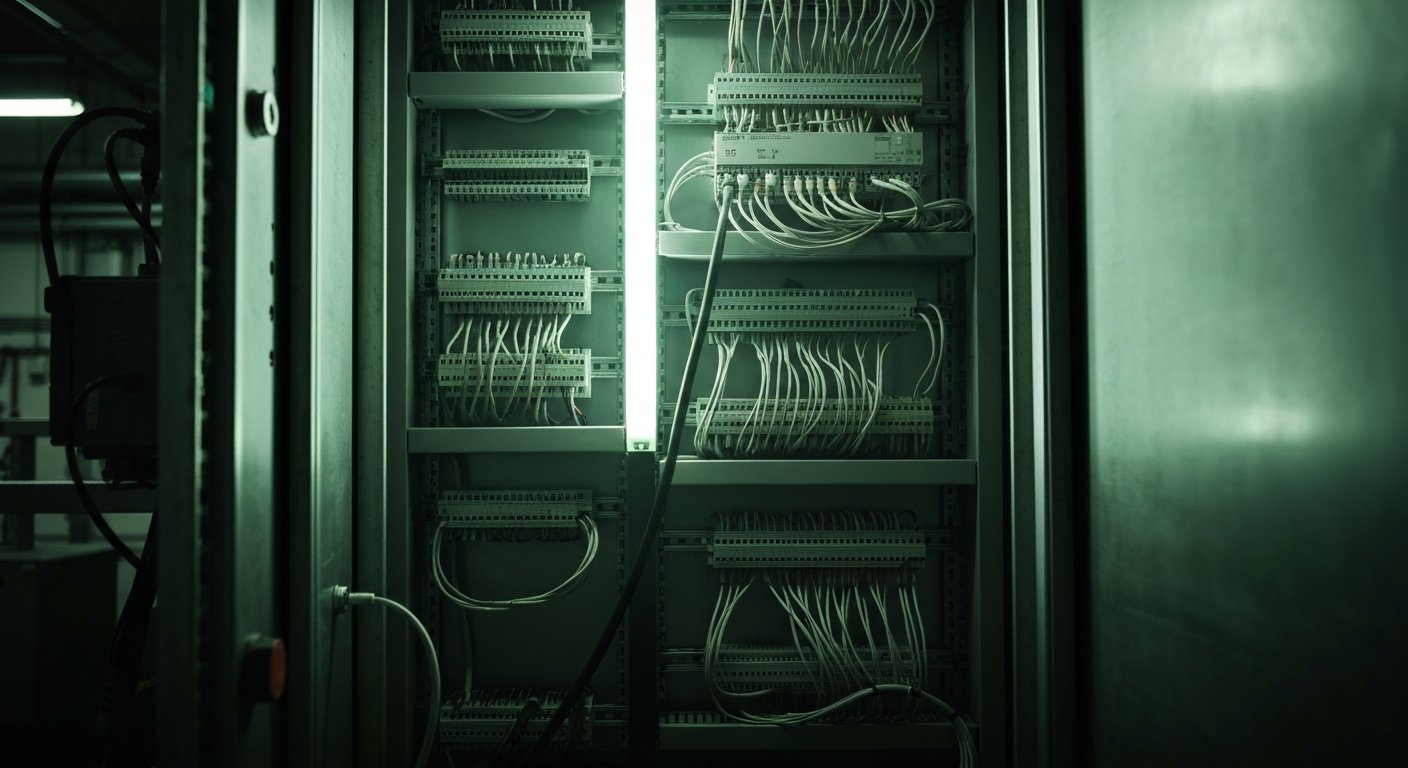

IODD files turn a cabinet full of sensors into devices the master identifies and configures on its own.

Modbus RTU offers none of that structure. Every slave defines its own coils, inputs, and holding registers; the integrator reads the datasheet and hand-builds the address map. When something breaks, the Modbus protocol returns only a small set of generic exception codes, illegal function, address, or data, with nothing more specific.

Commissioning is where this bites. In practice, getting an IO-Link sensor running looks like this:

1. Import the device's current IODD into the master, from the vendor's library or the public IODDfinder database.
2. The master reads the file and auto-populates every parameter with its real name and unit, no manual entry needed.
3. Confirm the device against the diagnostics the master now exposes natively, its standardized ID, event history, and condition-monitoring data.

That whole sequence takes a few minutes on an ifm master. Hand-mapping a Modbus RTU device from a PDF register table is a half-day job the first time. It runs longer still if the register addresses turn out to be off by one from what the manual claims.

Modbus RTU's simplicity cuts the other way: a handful of holding registers is easy to understand end to end, and a two-register temperature transmitter never needed the overhead IO-Link solves.

Verdict: IO-Link wins on configuration speed and diagnostic depth; Modbus RTU wins on sheer conceptual simplicity for small point counts.

Which Is Cheaper to Wire and Integrate?

IO-Link is cheaper to wire structurally. Its unshielded 3-wire cable carries power and signal together, while Modbus RTU needs 2 to 4 shielded wires plus a separate power run to each device (ifm; Watlow). That difference is documented at a 15% to 25% wiring cost saving versus shielded analog cabling (Technical Evolution of Industrial Connectivity).

IO-Link's cable carries 24V, ground, and the C/Q line in one unshielded run, terminated with an M8 or M12 connector. Class A ports supply 200 to 500 mA. Class B supplies up to 2 A at 24V DC on that same connector, with no separate power wiring to pull (ifm). Modbus RTU's RS-485 pair needs shielding plus a 120-ohm termination resistor at each end to hold signal integrity. Power for each device comes from somewhere else instead, a separate loop or local supply (Watlow).

None of this is a pricing claim; per-unit hardware costs for IO-Link masters and Modbus gateways aren't published in a way that supports one. What's documented is the structural difference, the same shielding and grounding burden behind most 4-20 mA loop noise problems we see in the field.

Verdict: IO-Link wins on wiring simplicity and integrated power; Modbus RTU carries the added cost of shielding and separate power runs, spread across many more devices per cable.

Which Fits Legacy Plants vs Greenfield?

Modbus RTU fits legacy plants; IO-Link fits greenfield builds and sensor-level upgrades. A 2024 comprehensive review of predictive maintenance across 342 industrial sites found 28% still running Modbus RTU (AI and Robotics in Predictive Maintenance review). Grand View Research, meanwhile, values the IO-Link market at $13.51 billion in 2023, projected to reach $48.57 billion by 2030.

Most Modbus RTU installations get extended rather than ripped out. New deployments favor Ethernet options like Modbus TCP, PROFINET, or EtherNet/IP, but RTU wiring already in the ground keeps running, often for decades, because replacing a working serial loop rarely pencils out.

IO-Link, by contrast, is growing fast at the sensor level. Grand View Research puts the market's compound annual growth at 19.2% from 2024 to 2030. That growth comes from new machine builds and sensor-by-sensor retrofits, not from swapping out existing buses.

In our experience, this plays out as coexistence, not replacement. Customers running long tank-farm or remote-meter Modbus RTU loops rarely touch that backbone. What changes is the discrete sensors nearer the machine, photoelectrics, pressure switches, proximity sensors. Those move to IO-Link one panel at a time, while the Modbus wiring keeps doing what it's always done at distance.

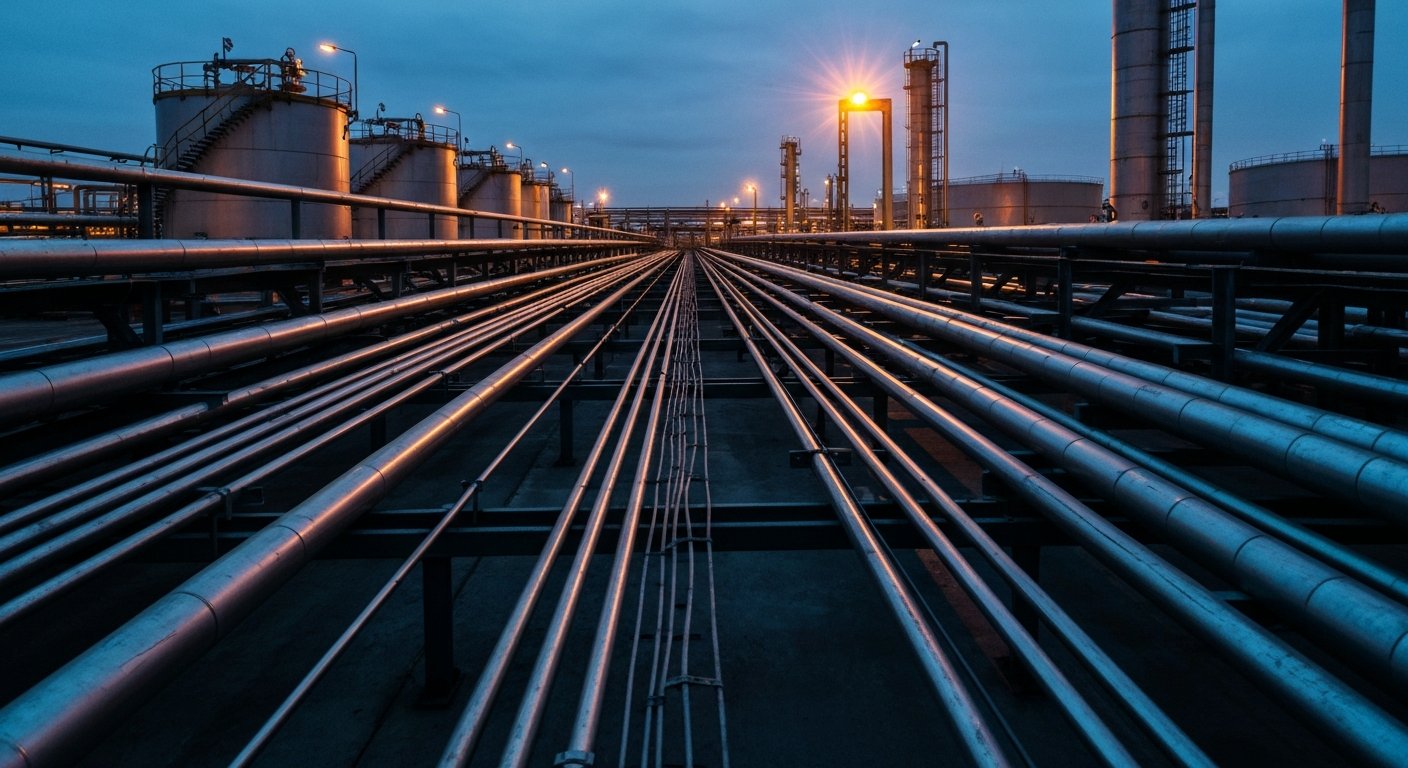

Modbus RTU still owns the long runs, the tank farms and remote meters where a 20 m IO-Link cable cannot reach.

Greenfield builds skip that legacy pull, which is why IO-Link often wins the sensor-level default when there's no existing serial investment to protect.

Verdict: Modbus RTU wins in plants with existing serial infrastructure to protect; IO-Link wins for new builds and sensor-level upgrades layered on top.

Can You Use IO-Link and Modbus RTU Together?

Yes, and it's common practice. IO-Link masters gateway device data to Modbus TCP alongside PROFINET, EtherNet/IP, EtherCAT, and CC-Link IE (ISA), mapping each sensor's process data into holding registers so a Modbus controller reads it as a native slave.

Turck's multiprotocol IO-Link master is one example, gatewaying connected sensors onto Modbus TCP, PROFINET, EtherNet/IP, or EtherCAT from the same hardware (Turck). Balluff's BNI EIP-507 fills a similar role on its own network stack (Balluff). Both illustrate the same pattern: the master handles the fieldbus translation so the controller side needs no IODD support at all.

Most speak Modbus TCP upstream, since Ethernet has become the default backhaul for new IO-Link master designs. Where a plant's controller only understands serial Modbus, that coexistence typically happens at the backbone level instead, IO-Link at the sensor and a separate Modbus RTU loop carrying data further upstream.

I've specified this exact pattern for a customer whose PLC program had years of Modbus register logic written against it. Rather than touch that logic, we dropped an IO-Link master at the new equipment and auto-parameterized every sensor over IODD. Then we mapped the process data straight into the holding register range the ladder logic already expected. The PLC never knew IO-Link was involved.

Who Should Choose What

Choose IO-Link when you're adding smart sensors close to the machine and want fast commissioning with rich diagnostics. Choose Modbus RTU when you need to cover long distances or connect many simple devices on one cheap multidrop cable.

• Machine builders adding smart sensors: Choose IO-Link. Auto-parameterization and condition-monitoring diagnostics pay off fastest on equipment with several sensors per panel.
• Plants with an existing Modbus RTU backbone: Keep it, and add IO-Link at the edge through a Modbus-capable master. You get sensor-level diagnostics without rewriting the PLC's register logic.
• Remote monitoring across long distances (tank farms, remote meters): Choose Modbus RTU. Nothing in IO-Link's 20 m point-to-point spec touches that use case.

If neither fits, for example when you need controller-to-controller networking, look past both to an Ethernet-based fieldbus like PROFINET or EtherNet/IP. That's covered in our IIoT protocol decision framework.

Frequently Asked Questions

Is IO-Link a Replacement for Modbus RTU?

Not usually. IO-Link connects one sensor to one master port over a maximum 20 m cable (ifm), while Modbus RTU links up to 247 slaves on a single multidrop bus running as far as 1200 m (Watlow). Most working plants run both, IO-Link at the sensor and Modbus RTU or Modbus TCP carrying that data further upstream.

Can IO-Link and Modbus RTU Run on the Same Network?

Yes, typically through Modbus TCP rather than RTU directly. IO-Link masters gateway device data to Modbus TCP alongside PROFINET, EtherNet/IP, EtherCAT, and CC-Link IE (ISA), mapping each sensor's process data into holding registers a controller reads as native. Turck's multiprotocol IO-Link master and Balluff's BNI EIP-507 are two examples of this pattern (Turck; Balluff).

Which Protocol Is More Deterministic, IO-Link or Modbus RTU?

IO-Link. A COM3 connection cycles as fast as 400 microseconds, and wired IO-Link hubs run a process-data cycle around 2 ms (ISA; Balluff). Modbus RTU has no fixed cycle at all; it depends on sequential master polling, so response time is not deterministic and varies with how many slaves share the bus.

Why Do Plants Still Use Modbus RTU Instead of IO-Link?

Distance and device count. Modbus RTU's RS-485 pair (2 to 4 wires plus termination) reaches up to 1200 m at low baud rates and addresses up to 247 slaves on one cable run (Watlow), while IO-Link tops out at 20 m per device (ifm). For tank farms, remote meters, and legacy retrofits, that reach still wins.

Does IO-Link Cost Less to Install Than Modbus RTU?

IO-Link's unshielded 3-wire cable is documented to cut wiring costs 15% to 25% versus shielded analog cabling (Technical Evolution of Industrial Connectivity). Modbus RTU also requires shielded twisted-pair cable with 120-ohm termination, so similar savings likely apply, though that specific comparison hasn't been separately quantified. No public data compares IO-Link master and Modbus gateway hardware pricing directly, so we won't state a figure here.

Verdict: IO-Link vs Modbus RTU

IO-Link wins on speed, diagnostics, and wiring simplicity within its 20 m reach; Modbus RTU wins on distance and node count, connecting up to 247 slaves over 1200 m (Watlow). Neither replaces the other, and most working plants run both.

If you're specifying a new sensor, IO-Link's determinism and diagnostics make it the easier default inside 20 m. If you're covering distance or connecting many simple devices cheaply, Modbus RTU still does that job better than almost anything else in serial. Most plants we work with run both, and that's the architecture working as intended.

For the broader connectivity picture behind protocol selection, start with how industrial sensors work.
