TSN vs Standard Industrial Ethernet: What Determinism Actually Costs

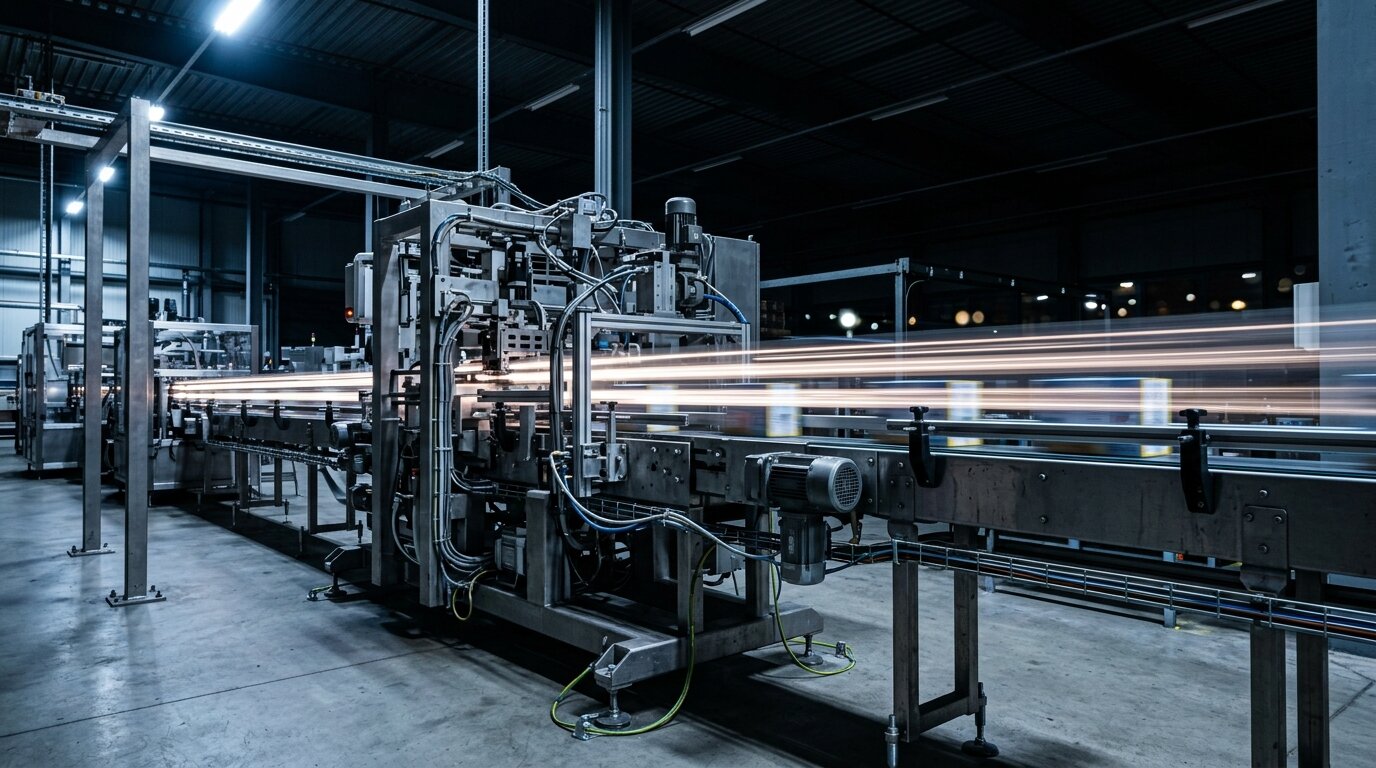

A packaging line runs a six-axis servo cell next to an overhead vision camera checking label placement, both wired into the same managed switch as the plant's regular I/O traffic. The camera pushes a burst of frames every time it grabs a picture. The servo drives need their position update every cycle, no exceptions. Put both on one switch and the camera's burst can sit in front of the servo packet in the same queue, and the drive misses its window.

That's the problem TSN exists to solve, and the honest answer up front: most plants don't have this problem yet. If your network carries one deterministic protocol on its own wire, standard Industrial Ethernet already does the job. TSN earns its keep specifically when time-critical control traffic and everything else, video, IT data, diagnostics, have to share the same physical network without one degrading the other.

TL;DR: Standard switched Ethernet forces every frame through store-and-forward queuing, so a large low-priority frame can block a time-critical one for the length of its own transmission - up to 120 microseconds for a full MTU frame on 100 Mbps (NotebookLM, TSN notebook, 2026). TSN fixes this with a synchronized clock (802.1AS), scheduled transmission gates (802.1Qbv), and frame preemption (802.1Qbu), cutting real-world control-loop jitter from 105 microseconds under load to 28 microseconds in ODVA testbed data. The cost is dedicated switch silicon and a centrally engineered network, not a firmware upgrade.

This piece assumes you've already read EtherCAT vs PROFINET and PROFINET vs EtherNet/IP. TSN doesn't compete with either. It's the Layer 2 foundation both are starting to run on.

What Does Standard Switched Ethernet Actually Do to a Time-Critical Frame?

Standard Ethernet moves packets on a best-effort, first-in-first-out basis, and a switch that has already started transmitting one frame cannot interrupt it to let a more urgent frame through (NotebookLM, TSN notebook, 2026). That single rule is the entire source of the determinism problem industrial networks run into.

A 1500-byte maximum-size frame occupies a 100 Mbps link for about 120 microseconds while it serializes onto the wire (NotebookLM, TSN notebook, 2026). If a critical control packet, a robotic arm position update or a drive synchronization command, arrives at the egress queue a moment after that large frame starts moving, it waits the full 120 microseconds behind it. Nobody scheduled that delay. It's a coincidence of arrival time, and it's called priority inversion: a low-priority background frame dictating the latency of a high-priority one.

IEEE 802.1Q priority tagging helps, sorting traffic into eight classes, but it still can't guarantee an end-to-end delivery time (NotebookLM, TSN notebook, 2026). Priority only decides which queue a frame waits in. It does nothing about a frame already on the wire. As network load climbs, these queuing delays cascade, and the jitter grows unbounded rather than settling into a predictable band.

The gap shows up starkly in ODVA's own testbed data. Standard Ethernet jitter on CIP Motion controller-to-device messages measured 38 microseconds on a quiet network, and 105 microseconds once a 96 Mbps background traffic load hit the same switch (NotebookLM, TSN notebook, 2026). That's not a small margin of error. It's the difference between a motion loop holding its cycle and one that doesn't, and it happens on hardware that was working fine five minutes before someone plugged in a busy IT device.

Citation capsule: Standard switched Ethernet uses store-and-forward queuing, so a switch cannot interrupt an in-progress frame transmission even when a time-critical packet arrives behind it - a full 1500-byte MTU frame occupies a 100 Mbps link for roughly 120 microseconds, creating unbounded, load-dependent jitter. ODVA testbed measurements found CIP Motion jitter climbing from 38 to 105 microseconds once a 96 Mbps background load was added to the same network (NotebookLM, TSN notebook, 2026).

What TSN Mechanisms Actually Fix This?

TSN is a modular set of IEEE 802.1 amendments, and each one targets a specific failure mode in standard Ethernet rather than replacing the network wholesale (NotebookLM, TSN notebook, 2026). You adopt the pieces your traffic actually needs.

802.1Qbv, the Time-Aware Shaper, puts a programmable gate on every egress queue in a switch port, controlled by a repeating Gate Control List that opens and closes each queue at precise moments (NotebookLM, TSN notebook, 2026). When a scheduled window opens for critical traffic, every lower-priority gate closes, so nothing else can occupy the wire during that slice of time. That's the fix for priority inversion: the frame that would have blocked a critical packet simply isn't allowed to start.

802.1Qbu and 802.3br add frame preemption on top of that. A large low-priority frame already mid-transmission gets paused, the urgent frame goes out, and the paused frame resumes from where it left off (NotebookLM, TSN notebook, 2026). Without preemption, a scheduler has to reserve a guard band equal to the largest possible packet before every scheduled window, wasting bandwidth to guarantee the wire is clear. Preemption shrinks that guard band down to the size of a minimum 64-byte fragment, which recovers most of that wasted capacity (NotebookLM, TSN notebook, 2026).

802.1Qci, per-stream filtering and policing, works at the other end of the problem: not scheduling good traffic, but stopping bad traffic from ever reaching the schedule. It identifies individual streams by destination MAC, VLAN, and priority, then enforces a rate contract on each one (NotebookLM, TSN notebook, 2026). A malfunctioning device flooding the network, sometimes called a babbling idiot node, gets its excess frames dropped or re-marked at the ingress port before it can starve anyone else's bandwidth.

Citation capsule: IEEE 802.1Qbv's Time-Aware Shaper closes lower-priority egress gates during scheduled windows, eliminating priority inversion outright. 802.1Qbu frame preemption lets an urgent frame interrupt a low-priority frame mid-transmission and shrinks the mandatory guard band from a full maximum-size packet down to a 64-byte fragment. 802.1Qci per-stream filtering enforces individual bandwidth contracts at the ingress port, dropping frames from a malfunctioning device before it can flood the shared network (NotebookLM, TSN notebook, 2026).

Why Is Time Synchronization the Foundation Everything Else Depends On?

Every TSN mechanism above assumes every switch and endpoint agrees on the time down to the microsecond, and that agreement comes from IEEE 802.1AS, a tightly constrained profile of PTP called gPTP (NotebookLM, TSN notebook, 2026). Without it, a Gate Control List means nothing, because each device would be opening and closing its own gates against its own clock, not the network's.

gPTP elects a single Grandmaster clock through a Best Master Clock Algorithm, then has every device measure both the propagation delay on its link and the residence time a switch spends processing a frame, correcting for both continuously (NotebookLM, TSN notebook, 2026). Unlike standard PTP, which can tolerate ordinary switches acting as transparent relays, gPTP requires every single bridge in the path to be an active participant. There's no coasting through a non-TSN switch in the middle.

The spec calls for sub-microsecond accuracy, and real deployments beat that comfortably. Hardware-assisted timestamping on physical transceivers has driven prototype industrial motion systems down to a measured synchronization offset around 200 nanoseconds (NotebookLM, TSN notebook, 2026). That precision has a cost: PHY-level timestamping needs dedicated board traces and interfaces most standard NICs never bothered to include.

Clock drift matters just as much as initial sync. If a device loses its link to the Grandmaster, it enters holdover, coasting on its own internal oscillator until the connection returns (NotebookLM, TSN notebook, 2026). Core switches typically use expensive oven-controlled oscillators for long, stable holdover; edge devices settle for cheaper temperature-compensated ones that drift faster but tolerate heat better. Get holdover wrong on a core switch and its Gate Control List slides out of alignment with everyone else's, and the schedule that was supposed to prevent collisions starts causing them instead.

What Protocols Actually Run Over TSN Today?

TSN operates at Layer 2, so it doesn't compete with PROFINET, EtherNet/IP, or OPC UA. It sits underneath them, carrying their frames on a scheduled, synchronized wire instead of a best-effort one (NotebookLM, TSN notebook, 2026).

PROFINET Conformance Class D

PROFINET's answer is Conformance Class D, which swaps out the proprietary ASIC switches that IRT depended on for standard IEEE TSN hardware, while keeping every application-layer service, cyclic data, alarms, diagnostics, unchanged (NotebookLM, TSN notebook, 2026). Cyclic I/O still bypasses TCP/IP entirely, riding Layer 2 frames tagged with PROFINET's own EtherType. CC-D adds a Remote Service Interface for acyclic traffic that also skips the socket layer, which keeps the protocol independent of IP addressing entirely.

The payoff is bandwidth and reach IRT never had. Because CC-D runs on generic IEEE silicon instead of vendor-locked hardware, it scales from 10 Mbps up through 10 Gbps and even supports 5G wireless links, none of which the old fixed-function IRT chips could touch (NotebookLM, TSN notebook, 2026). Fragmentation of Ethernet telegrams during the scheduled window lets CC-D reach cycle times as tight as 31.25 microseconds, matching IRT's fastest tier on commodity hardware.

EtherNet/IP and CIP Over TSN

EtherNet/IP treats TSN as an optional, backward-compatible profile rather than a mandatory rewrite, but bolting CIP onto TSN surfaces a real incompatibility: CIP Sync's default timing uses end-to-end transparent clocks, while the industrial TSN profile mandates 802.1AS's peer-to-peer model (NotebookLM, TSN notebook, 2026). ODVA resolves the mismatch with two gateway components. A Time Gateway translates between the two clock domains so legacy and TSN devices share one Grandmaster. A Stream Gateway converts raw Layer 2 CIP frames into scheduled TSN streams that a Gate Control List can protect.

For CIP Motion specifically, ODVA recommends class-based scheduling over scheduling each individual stream, since motion traffic has no dependency on frame order, only on making its cycle deadline (NotebookLM, TSN notebook, 2026). That cuts the configuration burden without giving up the guarantee.

OPC UA FX

OPC UA FX, sometimes written UAFX, extends OPC UA's information model down past the controller layer to the field devices themselves, an area traditional OPC UA never reached (NotebookLM, TSN notebook, 2026). It pairs OPC UA's Publish/Subscribe messaging with TSN's scheduling to get the same microsecond-level determinism industrial fieldbuses have offered for years, but without a proprietary transport underneath it.

The practical win is interoperability. FX models a device's capabilities as standardized Functional Entities, so a servo drive or a flowmeter from any vendor exposes the same setpoint and actual-value structure a controller can read without custom translation code (NotebookLM, TSN notebook, 2026). It also defines Device-to-Device communication, letting two field devices, a vision system and a robot, trade high-speed data directly without routing through a PLC in the middle. For where OPC UA fits above the field level, see our complete guide to OPC UA.

What Does TSN Actually Cost in Hardware and Engineering Effort?

The honest cost has two parts, and both are larger than most vendor pitches admit. First, the switch and endpoint silicon. Second, the engineering hours to configure it. Neither is optional.

Standard switch ASICs manage queues in software, and that's fundamentally too slow for microsecond-level gating (NotebookLM, TSN notebook, 2026). You need dedicated hardware: switches like Cisco's IE-4000 rely on an FPGA co-processor sitting directly in the data path to execute Gate Control List schedules and clock sync in silicon, and Microchip builds equivalent scheduling logic straight into custom ASICs like the SparX-5. On the endpoint side, network controllers such as Intel's I225-LM and I226-LM add dedicated hardware queues that inject packets onto the wire at the exact scheduled instant, offloading that timing from the host CPU. None of this arrives via a firmware update on existing gear.

Timestamping precision adds its own tier of cost. MAC-level timestamping gets you to roughly 800 nanoseconds of accuracy and works fine for most switches. Pushing to sub-100 nanosecond precision means timestamping inside the PHY transceiver itself, which needs dedicated board traces for pulse-per-second signals and more complex firmware to keep the host clock synced to the PHY's local oscillator (NotebookLM, TSN notebook, 2026). Oscillator choice follows the same tier structure: Grandmaster clocks and core switches justify an oven-controlled oscillator's cost for stable holdover, while distributed I/O and field sensors get by on cheaper temperature-compensated parts.

Engineering effort is the part spreadsheets tend to skip. TSN replaces plug-and-play with a centralized, offline-planned model built around IEEE 802.1Qcc's Centralized Network Configuration and Centralized User Configuration entities (NotebookLM, TSN notebook, 2026). The CNC crawls the physical topology, gathers every device's bandwidth and latency requirements from the CUC, then runs network calculus to generate a collision-free Gate Control List for every switch. If the math doesn't close, the CNC refuses to produce a schedule and hands the conflict back to an engineer, who currently has to tune parameters like earliest and latest transmit offsets by hand (NotebookLM, TSN notebook, 2026). Most OT teams have never touched configuration tooling at this level, and the industry's own assessment is that better wizard-style interfaces are still in development, not shipped.

How Do You Migrate an Existing Network to TSN?

Nobody rips out a functioning plant network overnight. The industrial installed base moves carefully, proving return on investment before committing, and TSN migration follows that same conservative pattern rather than a forklift swap (NotebookLM, TSN notebook, 2026).

The typical path starts at the backbone: TSN-capable switches go in at the cell or line level first, while existing field devices keep running whatever protocol they already speak. TSN edge gateways translate that legacy fieldbus traffic into properly scheduled TSN streams, so an old EtherCAT or PROFINET IRT device gets equal protection on the shared backbone without needing a hardware swap of its own (NotebookLM, TSN notebook, 2026). Individual devices then get replaced with native TSN equivalents as normal refresh cycles come around, not on a forced schedule.

Brownfield coexistence is mandatory in the IEC/IEEE 60802 industrial profile, meaning a legacy device can sit on the same physical wire as TSN traffic. But that device gets treated as best-effort, and TSN switches actively close its egress gate during every scheduled window for higher-priority traffic (NotebookLM, TSN notebook, 2026). Left unmanaged, that starves legacy devices entirely. The fix is deliberate: the CNC has to reserve a guaranteed minimum slice of cycle time for non-scheduled traffic, so legacy communications keep functioning while the migration proceeds one cell at a time.

When Does TSN Actually Earn Its Keep, and When Should You Skip It?

TSN earns its keep the moment time-critical control traffic has to share one physical network with something that can't be trusted to behave, video, IT data, or a mixed vendor fleet, and not a moment before. Converged smart manufacturing cells are the clearest case: a cobot, a machine-vision camera, and a safety controller sharing one switch need TSN specifically so the camera's bursty traffic can't cause the robot to miss a control cycle (NotebookLM, TSN notebook, 2026). Automotive in-vehicle networks lean on a dedicated TSN profile, 802.1DG, to synchronize ADAS sensors and autonomous driving compute nodes over one lightweight Ethernet backbone. Aerospace runs its own profile, 802.1DP, for the same reason. Telecom uses TSN in 5G fronthaul, where nanosecond-level sync keeps calls from dropping across distributed radio nodes.

Skip it if your network already runs one deterministic protocol on its own dedicated wire and nothing else contends for that bandwidth. A conveyor line pushing part counts to a dashboard doesn't need microsecond scheduling; it needs a working PLC and a reliable cable. IEC/IEEE 60802, the industrial TSN profile, only reached formal publication on June 29, 2026, and conformance testing is just now ramping through late 2026 (NotebookLM, TSN notebook, 2026). Hardware is arriving fast in greenfield builds and OEM platforms, but most integrators don't expect brownfield plants to convert wholesale before roughly 2030. If your line isn't converging IT and OT traffic on one wire today, that timeline gives you room to wait for the tooling to mature rather than being an early adopter of a schedule you'll be hand-tuning yourself.

Frequently Asked Questions

What does TSN actually add to standard Ethernet?

TSN adds a synchronized clock (802.1AS/gPTP), scheduled transmission gates (802.1Qbv), frame preemption (802.1Qbu), and per-stream policing (802.1Qci) on top of ordinary 802.3 Ethernet, turning best-effort delivery into a bounded, sub-millisecond guarantee (NotebookLM, TSN notebook, 2026).

Does TSN replace PROFINET, EtherCAT, or EtherNet/IP?

No. TSN runs at Layer 2, underneath these protocols. PROFINET adds Conformance Class D to run over TSN instead of proprietary IRT hardware, and EtherNet/IP defines an optional TSN profile with Time and Stream Gateways for CIP traffic (NotebookLM, TSN notebook, 2026).

How much does TSN reduce jitter under real network load?

In ODVA testbed measurements of CIP Motion traffic, jitter ran 38 microseconds on a quiet standard Ethernet link and 105 microseconds once a 96 Mbps background load hit the wire. The same traffic under TSN scheduling held to 14 and 28 microseconds respectively (NotebookLM, TSN notebook, 2026).

Do I need to replace my switches to run TSN?

Yes. Standard switch ASICs manage queues in software and cannot enforce microsecond-level gating. TSN needs dedicated silicon, such as FPGA co-processors or purpose-built ASICs, plus TSN-aware network interfaces on every endpoint that needs scheduled traffic (NotebookLM, TSN notebook, 2026).

Is TSN ready for brownfield plants in 2026?

The IEC/IEEE 60802 industrial profile published June 29, 2026, giving vendors a finalized target, but conformance testing only started ramping in late 2026. Integrators do not expect widespread brownfield TSN replacement before roughly 2030; legacy fieldbuses and TSN will coexist until then (NotebookLM, TSN notebook, 2026).

Conclusion

TSN doesn't make Ethernet faster. It makes Ethernet's delivery predictable, closing off the priority inversion that lets a bulk file transfer stall a servo drive's control loop. That guarantee comes from a synchronized clock, scheduled gates, preemption, and per-stream policing working together, not from any single standard alone.

The cost is real: dedicated switch and endpoint silicon, and a centrally engineered network that replaces plug-and-play with offline scheduling and network calculus. Pay it when converged traffic genuinely demands it, a cobot cell sharing a wire with a vision system and a safety controller, not because a vendor pitch made determinism sound free. For the protocols riding on top of this foundation, revisit PROFINET vs EtherNet/IP and EtherCAT vs PROFINET, or step back to the full IIoT protocol framework to see where TSN fits against the fieldbus and cloud layers around it.
