How Load Cells and Strain Gauges Work: A Field Guide

A load cell turns the weight of a forklift's pallet into a signal smaller than the noise riding on a USB cable - a few thousandths of a volt. The trick that makes that measurement trustworthy is a strain gauge wired into a Wheatstone bridge. Get the mechanism and the wiring right, and the reading holds. Get either wrong, and the scale drifts and nobody trusts it.

Most buying guides list load-cell types and stop there. They skip the part that causes field failures: what a strain gauge does, how the bridge turns strain into a voltage, and why the install (wiring, shielding, overload stops) matters as much as the spec sheet. This guide covers the mechanism, a type-selection matrix, and the wiring realities that decide whether your reading can be trusted. For the broader picture, see our industrial sensors guide; for a related strain-based technology, see pressure sensor types.

TL;DR: A strain gauge is a foil grid whose electrical resistance changes as it stretches or compresses. A load cell bonds strain gauges - usually four, wired in a Wheatstone bridge - to a spring element that deforms predictably under force, so the bridge outputs a small voltage, typically 1 to 3 mV per volt of excitation, proportional to the load. The spring element's shape sets the job: bending beam and single-point for platform scales, shear beam for higher-capacity and truck scales, S-type for tension and compression, canister/column for high compression. The signal is tiny, so wiring, shielding, and overload protection matter as much as the load cell itself.

What Is the Difference Between a Strain Gauge and a Load Cell?

A strain gauge is the sensing element - a fine metallic foil grid bonded to a surface, whose electrical resistance changes as the surface stretches or compresses, with a gauge factor around 2.0 for common foil gauges (Wikipedia; Omega, 2026). A load cell is the complete device: strain gauges bonded to a spring element and wired into a Wheatstone bridge.

This is the relationship most articles get backwards, and it confuses buyers immediately. You don't choose between a strain gauge and a load cell - a load cell IS how you put strain gauges to work measuring force. Nobody bolts a bare strain gauge under a hopper; they buy a load cell, which already contains the gauges, the spring element, the bridge wiring, and a sealed housing.

Under tension, a strain gauge's zig-zag foil trace stretches - it gets narrower and longer, and its resistance rises. Under compression, the trace shortens and broadens, and resistance falls. The gauge factor (GF) quantifies that relationship: GF equals the fractional resistance change divided by the strain, and for metallic foil gauges it lands just over 2.0 (Vishay, 2026).

That resistance change from a single gauge is too small to read reliably on its own - fractions of an ohm out of a few hundred. A load cell bonds the gauge to a spring element, an elastic metal body machined to flex predictably and repeatably under a known load, and wires multiple gauges into a bridge circuit that amplifies the tiny signal into something a controller can trust.

Citation capsule: Gauge factor around 2.0 tells you how sensitive the foil is to strain, not how accurate the finished measurement will be (Wikipedia; Omega, 2026) - a bare gauge with a good GF is still useless without a spring element machined to flex predictably and a bridge circuit to read it. That's the practical dividing line for a buyer: gauge factor is a datasheet number for the sensing element supplier, while accuracy, capacity, and load direction are properties of the finished load cell you actually specify. Nobody sources gauges and spring stock separately for an industrial application - the decision that matters is choosing the assembled cell, not evaluating the foil inside it.

The spring element's design decides everything downstream: how much load it can carry, whether it reads compression, tension, or both, and how it mounts. That's the subject of the type comparison later in this guide. The bridge circuit is what makes any of those geometries readable - covered next.

How Does a Wheatstone Bridge Turn Force Into a Signal?

Four strain gauges wired into a Wheatstone bridge - two stretching, two compressing as the spring element flexes - unbalance the bridge and produce a small differential voltage proportional to load. The opposing arms also cancel most temperature drift, which is why load cells use a full bridge rather than a single gauge.

A Wheatstone bridge is a diamond of four resistive legs. With no load applied, the resistance ratios in each leg match, the bridge is balanced, and the output voltage is zero. Bond the four gauges to the spring element in alternating tension and compression positions, apply a load, and the legs go out of balance together - producing a measurable output proportional to the applied force (Wikipedia; Omega, 2026).

Excitation and mV/V Output

The bridge needs a known, constant DC supply across it - the excitation voltage - typically 10 V, though it ranges from 5 V on battery-powered setups up to 20 V on some industrial transmitters (Omega, 2026). Because the output is so small relative to that supply, load cell sensitivity is rated in millivolts per volt (mV/V) rather than a raw voltage.

A cell rated at 2.96 mV/V, powered with a 10 V excitation source, outputs 29.6 mV at full rated load. Typical industrial load cells fall between 1 and 3 mV/V (Omega, 2026). At the raw-signal level, that's roughly 100 microvolts to a few millivolts of actual change - smaller than the noise on an unshielded cable, which is why shielding and twisted-pair wiring matter as much as the sensor choice, a point we return to under wiring below.

Temperature Compensation

Temperature moves two things at once: the spring element expands thermally, and each strain gauge's own resistance shifts with heat. A full Wheatstone bridge inherently compensates for a lot of this, because the gauges sit in opposing arms and their temperature-driven errors largely cancel each other out (Omega, 2026).

Manufacturers add two more layers on top of that geometry. Self-temperature-compensated (STC) alloys are matched to the thermal expansion rate of the spring element's base metal, so the gauge and the structure move together. Where that's not enough, a dummy gauge - identical to the active gauge but mounted unstrained, in thermal contact with the load cell - sits in an adjacent bridge arm purely to cancel temperature drift, contributing no strain signal of its own (Wikipedia, 2026).

Citation capsule: The reason load cells use a full four-gauge bridge instead of a single gauge or a half bridge comes down to two problems solved at once: sensitivity and temperature drift. A single gauge's resistance change is too small to read reliably and carries no built-in temperature cancellation, while a full bridge with gauges in opposing arms multiplies the usable signal to 1-3 mV/V on a typical 10 V excitation (range roughly 5-20 V) and cancels most thermal error for free (Omega, 2026). So what: if a spec sheet advertises a half-bridge or quarter-bridge load cell, expect it to need external temperature compensation the full-bridge design gets by geometry alone.

What Are the Main Load Cell Types?

Load cells are named by their spring-element geometry, and geometry sets both capacity and load direction. The common types are bending beam and single-point (lighter platform scales), shear beam (higher capacity, truck scales), S-type (tension and compression), canister/column (high compression), and button (miniature, embedded force sensing).

Beam and single-point cells

Bending beam cells measure bending forces in a low-profile package. Manufacturers typically rate them for light-to-medium industrial weighing: pallet scales, small platform scales, OEM equipment, and small hoppers. Capacity generally tops out around 1,500 lb (Interface, 2026). Treat that ceiling as a typical manufacturer range, not a hard limit; capacities vary by model.

Single-point cells are optimized for compression loads measured accurately regardless of where the weight lands on the platform - off-center loading included. That off-center tolerance is why they dominate small-to-medium platform scales, sized for platforms roughly 200 x 200 mm up to 1,200 x 1,200 mm (Interface, 2026).

Shear beam cells measure shear force in a low-profile design and typically span 100 kg up to 50 tons per cell - a wide enough range that a reinforced dual-shear-beam variant handles truck scales, large tanks, and big hoppers (Interface, 2026).

S-type, canister, and button cells

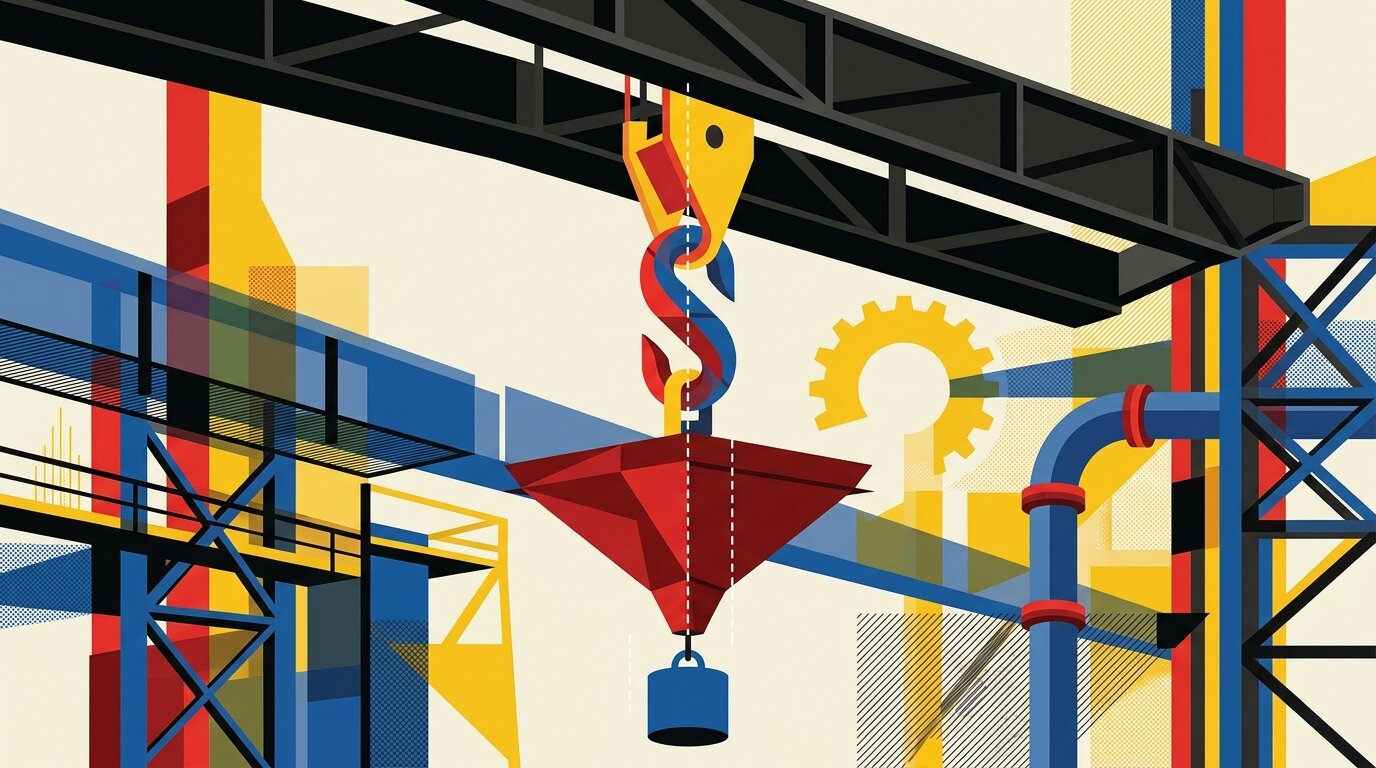

S-type cells, shaped like the letter they're named for, are the one geometry built to read both tension and compression. Typical capacities run from about 25 lb up to 20,000 lb (roughly 25 kg to 10,000 kg), which is why they show up in hanging tanks, hopper scales, and material-testing rigs where the load pulls rather than pushes (Interface, 2026).

Canister/column cells are heavily reinforced compression-only designs used where extreme capacity matters more than a compact footprint - weighbridges, truck scales, and large hopper installs. Button (miniature) cells are the opposite extreme: compression-only devices rated from around 1 kg up to 1,000 lb, built for space-constrained assemblies, lab equipment, and embedded force feedback in robotics (Interface, 2026).

Citation capsule: Decision rule for the type list: if the load pulls rather than pushes, S-type is the only common geometry that handles it, so tension applications skip straight past bending beam, shear beam, and canister designs entirely (Interface, 2026). For everything compression-only, capacity sorts the rest - bending beam and single-point for platform-scale duty under roughly 1,500 lb, shear beam once capacity climbs past that into truck-scale territory, canister/column when extreme capacity matters more than footprint. Treat every number here as a typical manufacturer range, not a universal limit, and confirm against the specific model before specifying.

How Is a Load Cell Wired and Read?

A load cell has excitation and signal lines - 4-wire (Ex+, Ex-, Sig+, Sig-) as the baseline, or 6-wire, which adds two sense lines that measure the actual voltage arriving at the bridge and correct for resistance drop over long cable runs. The choice matters more as cable length and temperature swings increase.

4-wire vs 6-wire connection

In a 4-wire setup, the same two wires that carry excitation to the bridge also have to carry it back through the return path, and their resistance rises with temperature and cable length. On a short, temperature-stable run that error is negligible. On a long cable run through a hot process area, it isn't - the voltage the bridge receives can differ from what the instrument thinks it's supplying, and the whole reading shifts with it.

A 6-wire cell adds two sense wires connected directly at the bridge's excitation points, carrying no current themselves, just measuring the real voltage there. The instrument compares that sensed voltage to its intended output and automatically corrects for the drop. That fix costs two extra conductors, but it pays for itself on any run long enough, or hot enough, for cable resistance to matter (Omega; Wikipedia, 2026).

In the field, the most common install mistake I see is a signal cable run stapled into the same tray as a VFD power feed for twenty or thirty feet, with the shield left floating at one or both ends. The reading doesn't fail outright - it creeps a few ounces over an hour under a perfectly constant load, and gets misdiagnosed as cell creep for weeks before anyone checks the cable routing. Moving the signal wiring off the power tray and landing the shield at one end only has fixed that same drift every time I've seen it.

Amplification and calibration

The signal integrity problem shows up before the wire-count decision does. A raw bridge output in the 100-microvolt to low-millivolt range is easy prey for electrical noise from nearby VFDs, motor starters, or long unshielded runs. Twisted-pair signal wiring inside a continuous shield, landed properly at one end, is not optional on anything longer than a bench test - see wiring sensor signals for the same principle applied to discrete sensor wiring.

Once the signal reaches an amplifier or transmitter, the instrument converts it to a usable engineering unit and displays it or passes it on to a controller - typically as a 4-20mA transmitter output, since a current loop travels long conduit runs without the voltage drop that would corrupt a raw mV/V reading (see 4-20mA vs 0-10V analog signals for how that choice is made). That instrument also needs periodic calibration: a zero and span check against known test weights, at intervals of roughly 18 to 24 months under standards like ISO 9000. Annual calibration is common practice, though, on cells in continuous industrial service (Wikipedia, 2026).

Citation capsule: So what: budget for 6-wire by default on any run long enough to matter, or where ambient temperature swings meaningfully, because the cost of two extra conductors is trivial next to the labor cost of chasing a drifting reading that traces back to cable resistance (Omega, 2026). Wire count alone doesn't fix noise, though - EMI rejection is a separate problem solved by shielded, twisted-pair signal wiring, not by adding sense lines. Treat 4-wire versus 6-wire as the cable-resistance decision and shielding as the noise-rejection decision, and specify both independently rather than assuming one solves the other.

How Accurate Are Load Cells?

Accuracy is a stack of error terms, not one number - nonlinearity, hysteresis, repeatability, and creep combine into a "combined error" specification, and standards like OIML R60 grade cells (for example, class C3) for legal-for-trade weighing applications (Wikipedia, 2026).

Nonlinearity is the maximum deviation of the actual output curve from a straight line drawn between zero load and rated capacity, expressed as a percentage of full-scale output. Hysteresis is the difference in output for the same applied load depending on direction - whether you're loading up toward capacity or unloading back down. Repeatability is how tightly the cell reproduces the same reading when the same load is applied under the same conditions, repeatedly. Creep is drift that develops over time under a sustained constant load, often introduced by tiny air gaps or flex in the adhesive bonding the gauge to the spring element.

None of those four terms tells the whole story on its own - a cell can be highly repeatable but still creep under sustained load, or perfectly linear but hysteretic between load directions. The combined-error spec is what a buyer should compare across models, and OIML R60's accuracy classes exist precisely to standardize that comparison for trade-legal weighing (Wikipedia, 2026).

Temperature interacts with all four terms. A cell rated tightly at 20°C can drift outside spec at process temperatures far from that reference, which is why the temperature-compensation techniques covered earlier - opposing bridge arms, STC alloys, dummy gauges - matter to the accuracy number, not just to signal stability.

How Do You Choose and Install a Load Cell?

Choose by load direction first, then capacity with a safety margin, accuracy class, and environment - a shear beam or bending beam handles compression-only platform scales, while an S-type is the only common geometry built for tension. Get that first decision wrong and no amount of accuracy-class shopping fixes it.

Choosing the right cell

Match load direction first, then let capacity and environment narrow the geometry.

Choose by:

1. Load direction - compression only (bending beam, single-point, shear beam, canister, button) versus tension and compression (S-type).
2. Capacity plus a safety margin - size for the maximum expected load, not the average, and leave headroom rather than running near rated capacity routinely.
3. Accuracy class - OIML R60 grade (e.g. C3) if the application is legal-for-trade; a lighter combined-error spec is fine for internal process monitoring.
4. Environment - IP67 sealing for wash-down, outdoor, or wet process areas, since moisture ingress causes offset drift and corrosion inside the bridge over time (Interface, 2026).
5. Space and mounting - low-profile bending/shear-beam geometries for tight platform clearance; canister or column cells where a tall footprint under a tank leg isn't a constraint.

Installation and overload protection

Install gotchas cause more field problems than the wrong type ever does:

• Overload protection - mechanical stops built into the mounting hardware, since a spring element that exceeds roughly rated capacity plus a third (on the order of 3,000 microstrain) plastically deforms rather than springing back, which permanently ruins linearity (Wikipedia, 2026).
• Avoid side or moment loading - load cells are calibrated for force along one axis; a bracket that lets the load rock or shift sideways introduces error the spec sheet never warned about.
• Seal against moisture - IP67-rated cells for anything wet, washed down, or outdoors; water intrusion at the gauge level is one of the most common causes of drifting zero readings in the field.
• Manage cable length - 6-wire, or a transmitter mounted close to the cell, on any run long enough for cable resistance to move the excitation voltage.
• Shield against EMI - twisted-pair, shielded signal cable routed away from VFD and motor power runs, given how small the raw bridge signal is.

Laid out side by side, the type-selection logic simplifies to: match direction first, then let capacity and environment narrow the geometry - most spec confusion in the field traces back to skipping that first step and shopping by capacity number alone.

If the application also needs position feedback alongside force - a press axis, a robotic gripper - pair this with encoders for position feedback rather than trying to infer position from load alone. And where vibration, not static weight, is the concern on the same machine, see how to select a vibration sensor.

What Are the Alternatives to Strain-Gauge Load Cells?

Strain-gauge load cells dominate static weighing, but other force-sensing technologies fit niches strain gauges handle poorly - capacitive for high-overload tolerance, hydraulic and pneumatic for hazardous or power-free areas, and piezoelectric for dynamic, impact-driven force rather than a static weight reading.

Capacitive load cells measure the change in capacitance between two non-contacting plates as force closes the gap between them. Because the sensing element strains 5 to 10 times less than a strain-gauge spring element, and there's no physical contact to overload, capacitive designs tolerate massive overloads - up to roughly 1000% of rated capacity in some designs (Wikipedia, 2026).

Hydraulic load cells use a piston compressing fluid, converting force into fluid pressure with no electrical components in the load path - which makes them immune to lightning strikes and a natural fit for hazardous-area installs. Pneumatic load cells work the same way with pressurized gas instead of fluid, and share that same intrinsic safety advantage in explosive atmospheres (Wikipedia, 2026).

Piezoelectric load cells generate a temporary voltage as a piezoelectric material deforms - an impulse, not a static reading, so charge leaks away and the signal decays over time. That makes them a poor fit for a scale sitting under a constant load, but the right choice for dynamic, high-frequency, or impact force measurement where a strain-gauge cell's response is too slow (Wikipedia, 2026).

For nearly all industrial weighing - platform scales, tank and hopper weighing, batching, material testing - strain-gauge load cells remain the default. They're accurate, well standardized, reasonably priced, and every install detail covered above is well documented, which is why the mechanism is worth understanding before you shop the type list.

Frequently Asked Questions

What is the difference between a strain gauge and a load cell?

A strain gauge is the sensing element - a foil grid whose electrical resistance changes as it stretches or compresses, with a gauge factor around 2.0 for metallic foil. A load cell is the finished device: strain gauges bonded to a spring element and wired into a Wheatstone bridge (Wikipedia; Omega, 2026).

How do you choose the right load cell type?

Match load direction first - tension, compression, or both - then capacity with a safety margin, accuracy class, and environment. A shear beam suits high-capacity compression like truck scales; an S-type suits hanging or tension loads (Interface, 2026).

What are the types of load cells?

The common types by spring-element geometry are bending beam, single-point, shear beam, S-type, canister/column, and button (miniature). Each geometry sets the capacity range and whether it reads compression, tension, or both (Interface, 2026).

How accurate are load cells?

Accuracy is a stack of error terms, not one number: nonlinearity, hysteresis, repeatability, and creep combine into a combined-error spec. Standards like OIML R60 grade cells - for example class C3 - for legal-for-trade weighing (Wikipedia, 2026).

Why do load cells use strain gauges?

Strain gauges turn mechanical deformation into a resistance change that a Wheatstone bridge can amplify into a usable voltage, typically 1 to 3 mV/V. That combination is precise, linear, low-cost, and temperature-compensable inside the bridge itself (Omega, 2026).

Conclusion

A load cell is a strain gauge with a job: strain gauges bonded to a spring element, wired into a Wheatstone bridge, outputting a tiny voltage - typically 1 to 3 mV/V - proportional to force. The spring element's geometry decides capacity and load direction, from bending beam platform scales to S-type tension cells to high-capacity canister designs.

None of that accuracy survives bad wiring. The signal is microvolts to a few millivolts, so 4-wire versus 6-wire on long cables, shielded twisted-pair against EMI, mechanical overload stops, and IP67 sealing are not optional extras - they're half the accuracy spec. Match load direction and capacity first, then let environment and accuracy class narrow the final choice.

For more selection frameworks like this one, read the complete industrial sensors guide, and for another strain-based measurement technology, see pressure sensor types.
