How Ultrasonic Distance Sensors Work (and Where They Fit)

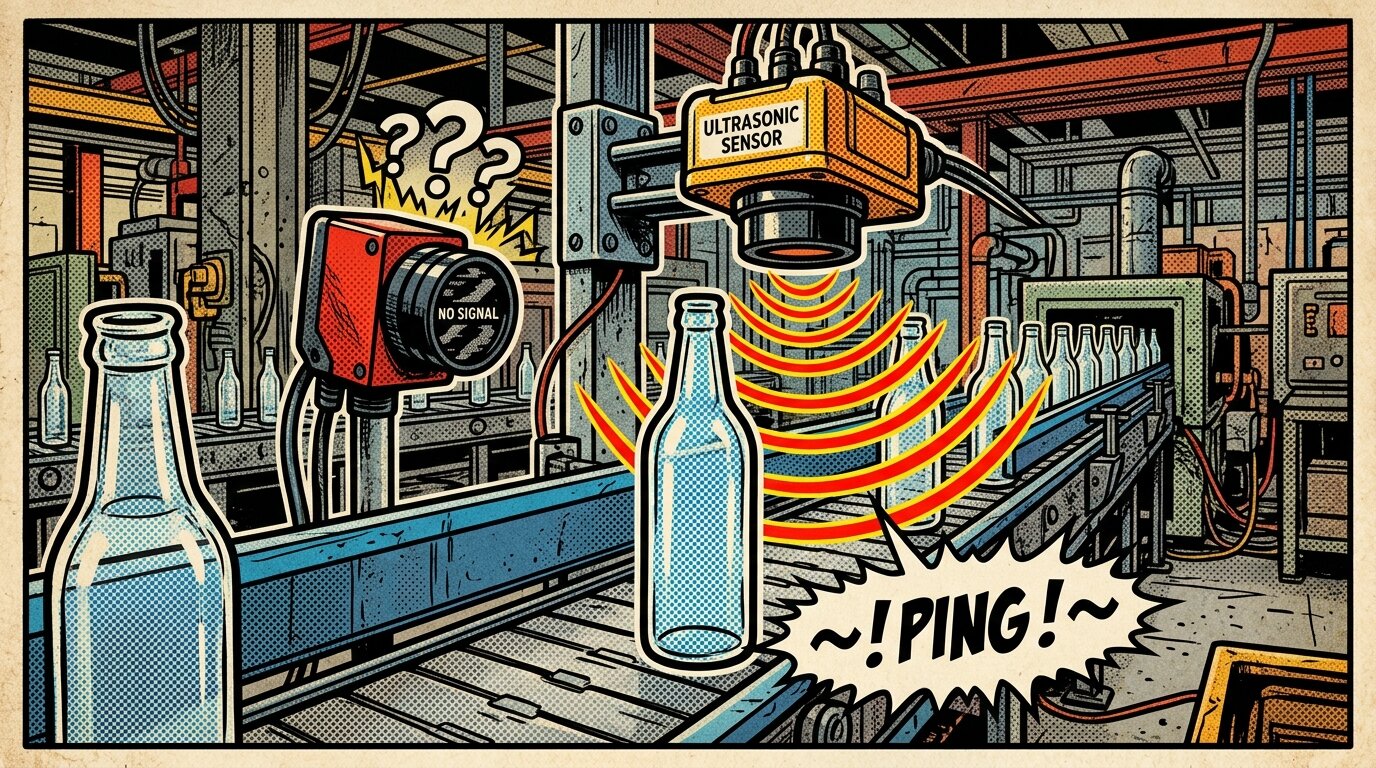

An ultrasonic sensor can spot a clear glass bottle, a black rubber part, and a puddle of water on the same line, three targets that would blind most optical sensors. It doesn't look for reflected light. It listens for an echo. That single design choice explains almost everything good and bad about how these sensors behave once they leave the datasheet.

TL;DR: An ultrasonic sensor times a sound echo bouncing off a target; distance equals speed of sound times time, divided by two. Because it listens instead of looks, it detects almost any material - clear glass, polished metal, liquids - that fools optical sensors. The trade: a blind zone near the face (often up to about 100 mm), a beam cone that needs the target within roughly +/-10 degrees of perpendicular, and a reading that drifts with air temperature unless the sensor compensates (Banner, 2026).

Engineers reach for ultrasonic because it detects almost anything. Then they fight a nuisance trip near the mount, a target that reads fine until it tilts, or a reading that creeps as the plant heats up over an afternoon shift. None of that is a bad sensor. It's the physics of sound, and once you see the pattern, you stop fighting it and start designing around it.

This guide covers the time-of-flight principle, the blind zone, how frequency trades range for resolution, and why beam angle and target angle matter. It also covers how temperature moves readings and which targets it handles well and badly. The guide explains outputs, multi-sensor arrays, and when to pick ultrasonic over photoelectric or inductive sensors. For the broader landscape of detection technologies, start with the industrial sensors guide; for the optical alternative, see photoelectric sensor types.

How Does an Ultrasonic Sensor Work?

An ultrasonic sensor fires a short burst of sound above human hearing and measures how long the echo takes to return. Distance equals the speed of sound multiplied by that elapsed time, divided by two, because the sound travels to the target and back (HC-SR04 analysis, 2026). The transducer does double duty, speaking and then listening.

A piezoelectric element inside the transducer flexes when you apply a voltage pulse, emitting a burst of ultrasonic sound, typically in the tens of kilohertz range, well above what a human ear can pick up. The same element (or a matched second one) then listens for the pressure wave bouncing back off whatever it hits. A timer starts the instant the pulse fires and stops the instant the echo returns.

The "divide by two" matters because the timer measures the round trip, not the one-way distance. If the target sat right against the sensor, the sound would still need to travel out and back, so half the elapsed time gives the actual gap. At 20 C, sound moves through air at roughly 343 m/s (HC-SR04 analysis / Cramer, 2026). It follows the relationship 331.4 + 0.6 x T, where T is temperature in Celsius. That temperature term becomes important later.

Because the sensor is listening for a reflected pressure wave and not reflected light, it doesn't care what the target looks like. Sound bounces off nearly any solid or liquid surface dense enough to reflect a pressure wave, regardless of color, gloss, or transparency. That's the whole appeal, and it's why ultrasonic shows up on lines where photoelectric sensors keep missing the target.

Citation capsule: An ultrasonic sensor measures distance by timing the round trip of a reflected sound pulse: distance equals the speed of sound multiplied by elapsed time, divided by two. At 20 C, sound travels through air at roughly 343 m/s, following 331.4 + 0.6 x T (HC-SR04 analysis / Cramer, 2026). Because detection depends on a reflected pressure wave rather than reflected light, the sensor is largely indifferent to target color, gloss, or transparency, unlike optical detection methods.

Why Is There a Blind Zone?

Right after the transducer fires its pulse, the piezoelectric element keeps physically ringing for a brief moment, and a ringing transducer can't hear a faint echo over its own vibration. That creates a dead zone near the sensor face, typically 0 to about 100 mm depending on the model, where nothing can be reliably detected (ISSR, 2026).

Think of it like a bell. Strike it, and it keeps humming after the strike, even though the striker has stopped moving. An ultrasonic transducer behaves the same way mechanically, and the sensor's electronics have to wait out that ring-down before they can trust anything the receiver reports. A target sitting inside that window either returns no reading at all or an unreliable one, because the echo arrives while the transducer is still shaking from its own pulse.

Mount so the closest expected target sits beyond the blind zone, not right up against the sensor face. This usually means adding stand-off distance during layout rather than fixing it after commissioning. There's also a real trade with range: sensors built for longer maximum range typically ring longer and carry a larger blind zone, so a long-range model isn't automatically the safer choice for a tight, close-mount application.

In the field, I've traced more than one intermittent "no part detected" fault back to a sensor mounted too close to a fixture stop, right inside its own blind zone. The fix was never a wiring change. It was moving the sensor back a few centimeters so the nearest target position cleared the dead band.

Citation capsule: An ultrasonic transducer keeps mechanically ringing for a short interval after it fires, and a ringing element can't distinguish a real echo from its own vibration, creating a blind zone near the sensor face, typically 0 to about 100 mm depending on the model (ISSR, 2026). Longer-range sensors generally carry a larger blind zone, so mounting the nearest expected target beyond that dead band, with deliberate stand-off distance, is a layout decision, not an afterthought.

What Sets the Range - Frequency?

Transducer frequency is the master trade in ultrasonic sensing: lower frequency reaches farther but spreads wider, higher frequency stays short-range but tight and precise. A 40 kHz sensor can typically reach about 10 m; a 200 kHz sensor typically tops out around 1 m, because higher frequencies lose energy to air far faster (Purdue MEMS, 2026).

Air absorbs sound energy as it travels, and that absorption climbs steeply with frequency. 40 kHz sound loses roughly 1 dB per meter; 200 kHz sound loses roughly 10 dB per meter (Purdue MEMS, 2026). Ten times the attenuation per meter means the higher-frequency pulse can't survive a long trip. It fades below the receiver's noise floor well before it would reach a distant target.

Low frequency for range

A lower-frequency transducer, commonly around 40 kHz, wastes less energy to air absorption over distance, so it can still return a usable echo from meters away. The trade is a longer wavelength, which spreads into a wider beam cone and gives coarser resolution - fine positional detail gets averaged out across that wider footprint.

High frequency for resolution

A higher-frequency transducer, up in the 200 kHz range, is absorbed quickly, capping its useful range at around a meter. Its shorter wavelength produces a tighter beam and finer resolution, which makes it the better pick for close-range, precise measurement jobs, like sensing small parts or fine level changes over a short gap, where a 40 kHz sensor's wide cone would be too coarse.

Citation capsule: Ultrasonic transducer frequency trades range for resolution: a 40 kHz sensor typically reaches about 10 m because air absorbs it slowly (roughly 1 dB/m), while a 200 kHz sensor typically maxes out around 1 m because air absorbs it roughly ten times faster (roughly 10 dB/m) (Purdue MEMS, 2026). Lower frequencies suit long-range, coarse detection; higher frequencies suit short-range, high-resolution work.

How Does the Beam Cone and Target Angle Matter?

The sound leaves the transducer as a spreading cone, typically 6 to 12 degrees wide, so the target has to be large enough to intercept it and sit roughly perpendicular to the sensor face (ISSR / application docs, 2026). Tilt the target beyond about +/-10 degrees from perpendicular and the echo deflects away instead of bouncing back, leaving the sensor effectively blind (Newark / ISSR, 2026).

Sound behaves like light hitting a mirror at this scale. A flat surface square to the sensor sends most of the reflected energy straight back to the receiver. Tilt that same surface and the reflection angles off sideways, the same way light off an angled mirror misses your eye. Past roughly +/-10 degrees, not enough energy makes it back for a reliable reading, even though the target never moved out of range.

That cone shape cuts both ways. A wide beam is forgiving of small target-position variation and can catch a small target at range because the cone is wide enough to sweep across it. But the same width means the sensor can pick up unwanted objects at the cone's edge, like a nearby guard rail or an adjacent part on a crowded line, and report a false echo from something you never intended to sense.

I once chased a reading that vanished for no obvious reason on a part that was well within rated range. The bracket holding the sensor had been re-torqued slightly off-square during a maintenance pass, tilting the beam just enough that the target's flat face no longer sat perpendicular to it. Squaring the mount back up fixed the fault instantly, no wiring or parameter change involved.

Citation capsule: Ultrasonic sound leaves the transducer as a cone, typically 6 to 12 degrees wide, and reflects most reliably off a target held roughly perpendicular to the sensor face (ISSR / application docs, 2026). Detection becomes unreliable once the target tilts beyond about +/-10 degrees from perpendicular, because the echo deflects away like light off an angled mirror instead of returning to the receiver (Newark / ISSR, 2026).

How Does Temperature Affect Accuracy?

The sensor's entire measurement rides on the speed of sound, and that speed climbs about 0.6 m/s for every degree C of air temperature (Cramer, 2026). Left uncompensated, that shift makes an ultrasonic sensor drift roughly 1.7% per 10 C change from wherever it was calibrated (HC-SR04 analysis, 2026).

Run the math on the relationship from earlier: 331.4 + 0.6 x T. A sensor calibrated at 20 C assumes sound travels at 343 m/s. Push the air temperature up to 40 C and the true speed rises to roughly 355 m/s. The sensor still calculates distance using its calibrated 343 m/s figure, so it reports a target as farther away than it actually is, because the sound got there and back faster than the sensor assumed.

Temperature compensation fixes most of that error. A compensated sensor carries its own onboard temperature sensor, continuously recalculates the local speed of sound, and adjusts the time-of-flight math on the fly. Banner's data on its compensated QS18U models shows this cuts the error by roughly 90%, holding accuracy to about +/-1.8% across a -20 C to +60 C swing (Banner, 2026). That's the difference between a sensor that drifts noticeably from morning to a hot afternoon shift and one that barely moves.

Compensation handles the average air temperature at the sensor, not every disturbance in the air path. Watch for temperature gradients across the beam path, like a hot exhaust stream crossing between sensor and target, and for strong wind, both of which can still distort a reading even on a compensated unit.

Citation capsule: The speed of sound rises about 0.6 m/s per degree C (Cramer, 2026), so an uncompensated ultrasonic sensor drifts roughly 1.7% per 10 C shift from its calibration temperature (HC-SR04 analysis, 2026). Onboard temperature compensation recalculates the local speed of sound continuously, cutting that error by about 90% and holding accuracy to roughly +/-1.8% across a -20 C to +60 C range (Banner, 2026).

What Can It Detect (and What Defeats It)?

Ultrasonic sensors detect almost any solid or liquid regardless of color, gloss, or transparency, which is the technology's biggest edge over optical sensing. But sound-absorbing surfaces and awkward geometry still defeat it, so "detects anything" always comes with real exceptions.

On the strong side: clear glass, clear plastic film, polished or mirror-finish metal, and liquids all reflect sound well enough for a reliable echo, none of which reliably trip a photoelectric sensor. Bulk solids like grain, powder, or granulated product in a hopper also reflect sound cleanly enough for level sensing, though radar vs ultrasonic for level covers that dedicated tank-level use case in more depth.

Soft and sound-absorbing materials are the weak point for ultrasonic sensing. Foam, fabric, loose powder dust clouds, and other porous or fibrous surfaces scatter or absorb pulses instead of reflecting them cleanly. Steep target angles beyond the roughly +/-10 degree window cause detection to fail, even on targets that would otherwise reflect well. Environmental disturbances also degrade readings: heavy wind scatters the pulse, thick dust or fog attenuates it, and strong temperature gradients across the beam path bend the timing. A vacuum defeats ultrasonic outright, because sound needs a medium to travel through.

None of this makes ultrasonic unreliable. It makes it material-independent with known, physics-driven exceptions, which differs from being unpredictable. Once you know the exception list, you can spec around it.

Citation capsule: Ultrasonic sensing detects nearly any solid or liquid target regardless of color, gloss, or transparency, including clear glass, polished metal, liquids, and bulk solids, an advantage optical detection can't match (notebook synthesis, 2026). Sound-absorbing surfaces (foam, fabric, loose powder), steep target angles, heavy wind, thick dust, and a vacuum all defeat or degrade the reading, since these either scatter the pulse, deflect the echo, or remove the air medium sound needs to travel through.

Outputs, Wiring, and Multi-Sensor Use

Ultrasonic sensors ship as discrete switches with one or two set points, wired NPN or PNP, or as analog outputs (0-10 V or 4-20 mA) proportional to measured distance. When several sensors operate near each other, you have to prevent one sensor's pulse from being picked up by a neighboring sensor's receiver.

Discrete models use teach-in or window modes: you set a target distance and the output switches when a part crosses that threshold, or you define a window and the output trips only while a target sits inside it. Analog models instead output a continuous signal that tracks measured distance across a configured range, useful for level or position feedback rather than a simple present/absent decision. Analog wiring follows the same standards covered in most process-instrumentation setups; see the inductive vs capacitive proximity sensors guide for how discrete NPN/PNP output logic works on a comparable non-optical technology, and wiring the output for the wiring details.

Response time follows directly from range, because the sensor has to wait for the echo before it can fire the next pulse. A short-range unit can respond in roughly 15 ms. A sensor working out to about 4 m responds in roughly 47 ms, about 21 Hz. Stretch that to 6 m and response time grows to roughly 70 ms, about 14 Hz (Banner / research, 2026). Farther range means a slower update rate, since the sound has to physically travel farther before the sensor can trust the reading.

Put several ultrasonic sensors within earshot of each other, and one unit's pulse can trigger a false echo on a neighbor's receiver, a problem called crosstalk. The standard fixes are time-division triggering, where sensors fire in a fixed sequence rather than simultaneously, or serial/networked synchronization, where a controller coordinates firing order across the array so no two units listen while another is transmitting.

Ultrasonic vs Photoelectric vs Inductive

Pick ultrasonic when the target is transparent, shiny, liquid, or varies in color and you can tolerate a blind zone and a slower response. For opaque targets that need speed and a long, thin detection beam, photoelectric wins instead. For close-range metal detection in dirty, wet conditions, inductive wins, since sound-absorbing debris would confuse an ultrasonic sensor anyway.

Choose ultrasonic when:

• The target is clear glass, clear plastic, shiny/polished metal, or a liquid surface
• Target color varies and you need a color-independent reading
• The application tolerates a blind zone near the mount and a response time in the tens of milliseconds
• The target can be mounted or presented roughly perpendicular, within about +/-10 degrees, to the sensor
• You need proportional distance/level feedback, not just a hard on/off trip

Photoelectric wins where speed and long thin-beam reach matter most and the target is opaque; see photoelectric sensor types for how through-beam, retroreflective, and diffuse modes split that job further. Inductive wins on close-range metal detection in dirty or wet conditions where an ultrasonic sensor's sound-absorbing-target and beam-angle limits would be the bigger headache; see inductive vs capacitive proximity sensors for that comparison.

Ultrasonic wins on material independence and range; photoelectric wins on speed; inductive wins on close-range metal detection in dirty environments.

Frequently Asked Questions

How does an ultrasonic sensor work?

It emits a short burst of high-frequency sound and times how long the echo takes to return. Distance equals the speed of sound times that time, divided by two, since the sound travels to the target and back (HC-SR04 analysis, 2026).

What is the blind zone of an ultrasonic sensor?

A dead band near the sensor face where the transducer is still physically vibrating from its own pulse and cannot yet hear a returning echo, typically 0 to about 100 mm depending on the model (ISSR, 2026).

What is the difference between 40 kHz and 200 kHz ultrasonic sensors?

40 kHz trades resolution for reach, typically hitting about 10 m because air absorbs it slowly; 200 kHz trades reach for resolution, typically maxing out around 1 m because air absorbs it roughly ten times faster (Purdue MEMS, 2026).

How does temperature affect ultrasonic sensor accuracy?

The speed of sound rises about 0.6 m/s per degree C, so an uncompensated sensor drifts roughly 1.7% per 10 C of temperature change. Temperature-compensated models cut that error by about 90%, holding roughly +/-1.8% from -20 C to +60 C (Banner, 2026).

What are the advantages of ultrasonic sensors over optical sensors?

Ultrasonic sensors detect almost any solid or liquid regardless of color, gloss, or transparency, so they see clear glass, shiny metal, and liquids that defeat optical sensors. The trade-off is a blind zone, a wider beam, and a slower response.

Conclusion

An ultrasonic sensor times a sound echo instead of watching for reflected light, which is why it stays material-independent where optical sensors fail on glass, shiny metal, and liquids. That same physics sets the design rules: mount past the blind zone, keep the target roughly perpendicular within about +/-10 degrees, and compensate for temperature if the environment swings. Frequency is the dial that trades range for resolution, so match it to the job rather than defaulting to whatever's in stock.

Use ultrasonic where optical fails - clear, shiny, or liquid targets - not where you need top speed or a foam/fabric target it can't hear well. For the wider view of where it fits among other sensing technologies, read the industrial sensors guide, then photoelectric sensor types and radar vs ultrasonic for level for the dedicated tank-level case.
