RTD vs Thermocouple: Which Temperature Sensor to Choose

The global temperature sensor market is on track to reach $8.94 billion by 2030, growing at 3.8% CAGR (MarketsandMarkets, 2025). That growth reflects just how fundamental temperature measurement is across every process industry. Yet the RTD vs thermocouple decision — the single most common sensor selection question in instrumentation — still trips up engineers every day.

Many default to thermocouples out of habit. Others over-spec RTDs in environments that would destroy them. Both mistakes carry real costs: in calibration overhead, measurement error, or premature sensor failure. This guide gives you a vendor-neutral comparison of specs, wiring configurations, failure modes, and a decision matrix that no competitor provides.

Read more: Complete Guide to Industrial Sensors

TL;DR: RTDs win on accuracy (±0.1°C vs ±1.0°C per ISA, 2024) and long-term stability. Thermocouples win on temperature range (-270°C to +2,300°C vs RTD's -240°C to +650°C) and upfront cost (2.5–3× cheaper). The rule is simple: below 850°C where accuracy matters, choose RTD. Above 850°C, or in high-vibration environments, choose thermocouple.

What Is the Core Difference Between RTDs and Thermocouples?

Wired temperature sensors still hold roughly 91% of the overall market (Future Market Insights via GlobeNewswire, 2024) — and RTDs and thermocouples together account for the majority of that share. Understanding why they behave so differently starts with their operating principles, which couldn't be more distinct.

RTDs (Resistance Temperature Detectors) measure temperature by exploiting the predictable way a metal's electrical resistance increases with heat. A Pt100 RTD contains a platinum element with a resistance of exactly 100Ω at 0°C. As temperature rises, resistance rises at a defined rate per IEC 60751. The relationship is highly linear, which is a large part of why RTDs achieve such excellent accuracy.

Thermocouples operate on the Seebeck effect. When two dissimilar metals are joined at a point and a temperature difference exists between that junction and the reference end, a small millivolt-range voltage is produced. The voltage magnitude depends on the metal pair and the temperature differential. This is defined under ASTM E230 in the United States and IEC 60584 internationally.

The practical implication? RTDs require an excitation current — usually 1mA — because they're passive resistive devices. Thermocouples are self-powered generators. Neither is inherently superior; it depends entirely on the application.

One underappreciated point: thermocouples measure temperature difference, not absolute temperature. The reference junction (cold junction) must be compensated electronically, and that compensation introduces its own small error source. RTDs measure absolute resistance — no reference junction needed, no cold junction compensation error.

Citation capsule: RTDs and thermocouples are both wired contact sensors, which collectively hold ~91% of the temperature sensor market as of 2024 (FMI via GlobeNewswire). RTDs measure resistance change in a platinum element per IEC 60751; thermocouples generate millivolt signals from the Seebeck effect at a bimetallic junction per ASTM E230. This fundamental difference drives every performance tradeoff between the two sensor types.

RTDs measure absolute resistance with no reference junction needed — thermocouples measure temperature difference via the Seebeck effect, requiring cold junction compensation

Which Is More Accurate — RTD or Thermocouple?

RTDs are approximately 10× more accurate than standard thermocouples. According to ISA (2024), a typical RTD achieves ±0.1°C while a standard thermocouple delivers ±1.0°C. Under IEC 60751, a Class A Pt100 hits ±0.15°C at 0°C; the 1/10 DIN variant reaches ±0.03°C (WIKA Blog, IEC 60751, 2022).

Standard thermocouples specify ±2.2°C tolerance. Even special-limits-of-error (SLE) thermocouples — the tightest commercial grade — come in at ±1.1°C. That's still worse than RTD Class B (±0.3°C). The chart below makes this concrete.

It's worth distinguishing accuracy from repeatability. A thermocouple might give consistent readings that are consistently wrong by 1.5°C. An RTD gives readings that are both consistent and close to the true value. For pharmaceutical batch control or semiconductor processing, that difference matters enormously.

Why are RTDs more accurate? Platinum's resistance-temperature relationship is extraordinarily stable and well-characterized. Thermocouples rely on a voltage that varies with material composition, contamination, and metallurgical changes over time. More on drift in the FAQ section below.

A point worth making that most comparison guides miss: the RTD accuracy advantage compounds at the transmitter level. A 4-20mA transmitter spanning a 200°C range adds its own ±0.1% span error. If your sensor contributes ±1.0°C and your transmitter adds another ±0.2°C, you're at ±1.2°C total. Start with a Class A RTD at ±0.15°C and the same transmitter gives you ±0.35°C total. System-level accuracy stacks in your favor when you start with a better sensor.

Citation capsule: RTD accuracy is quantifiably superior at every tolerance class. A standard thermocouple delivers ±2.2°C while a Class A Pt100 RTD achieves ±0.15°C at 0°C per IEC 60751 — a 14× difference. Even special-limits thermocouples (±1.1°C) can't match RTD Class B (±0.3°C), per ISA (2024). For applications requiring tighter than ±0.5°C, RTDs are the only practical contact-sensor choice.

What Temperature Range Does Each Sensor Cover?

Thermocouples win on range — decisively. They span -270°C to +2,300°C depending on type, while RTDs are limited to -240°C to +650°C (National Instruments). That's a 4.3× wider operating window. Above 850°C, thermocouples aren't just preferred — they're the only wired contact sensor that survives (ISA, 2024).

RTDs do cover the cryogenic range well. A Pt100 functions reliably down to -240°C, making it a solid choice for liquid nitrogen storage and other sub-zero applications where moderate accuracy is needed. Type T thermocouples also perform well at low temperatures, and we'll cover that in the thermocouple type breakdown below.

What about the 650°C RTD ceiling? Thin-film Pt100 sensors start losing stability above around 500°C. Wire-wound designs in ceramic housings push closer to 850°C, but those are specialty sensors at premium cost. For anything above 850°C — glass furnaces, kilns, steel reheat furnaces, combustion chambers — thermocouples aren't just cheaper. They're your only option.

Citation capsule: Thermocouples cover -270°C to +2,300°C while Pt100 RTDs are limited to -240°C to +650°C, per National Instruments. That's a 4.3× wider temperature range. The ISA (2024) states that above 850°C thermocouples are the industry standard choice — no RTD alternative exists for high-temperature furnace, kiln, or combustion applications.

How Do Response Time, Cost, and Durability Compare?

A grounded thermocouple responds approximately 3× faster than a Pt100 RTD (Burns Engineering), and costs 2.5–3× less upfront (Acromag). Those two advantages explain why thermocouples still dominate high-volume industrial installations despite the RTD accuracy gap.

Response Time

Response time is reported as τ63 — the time to reach 63.2% of a step temperature change. That figure depends heavily on probe construction and immersion depth. The chart below shows the practical ranges across common configurations.

Notice that thin-film RTDs (0.5–5s) actually overlap with ungrounded thermocouples in response speed. If you need fast response and RTD-level accuracy, thin-film is worth specifying.

Cost and Total Cost of Ownership

Thermocouples typically cost $5–50 for standard industrial grades. Comparable RTDs run $30–150. That 2.5–3× upfront gap is real. But is it the whole story?

Not quite. Thermocouples drift faster — especially above 600°C — and require calibration every 3–12 months in demanding applications. Class A RTDs in stable processes often go 12–24 months between calibration events. Over a 5-year period, the TCO advantage can flip toward RTDs when calibration labor costs are included.

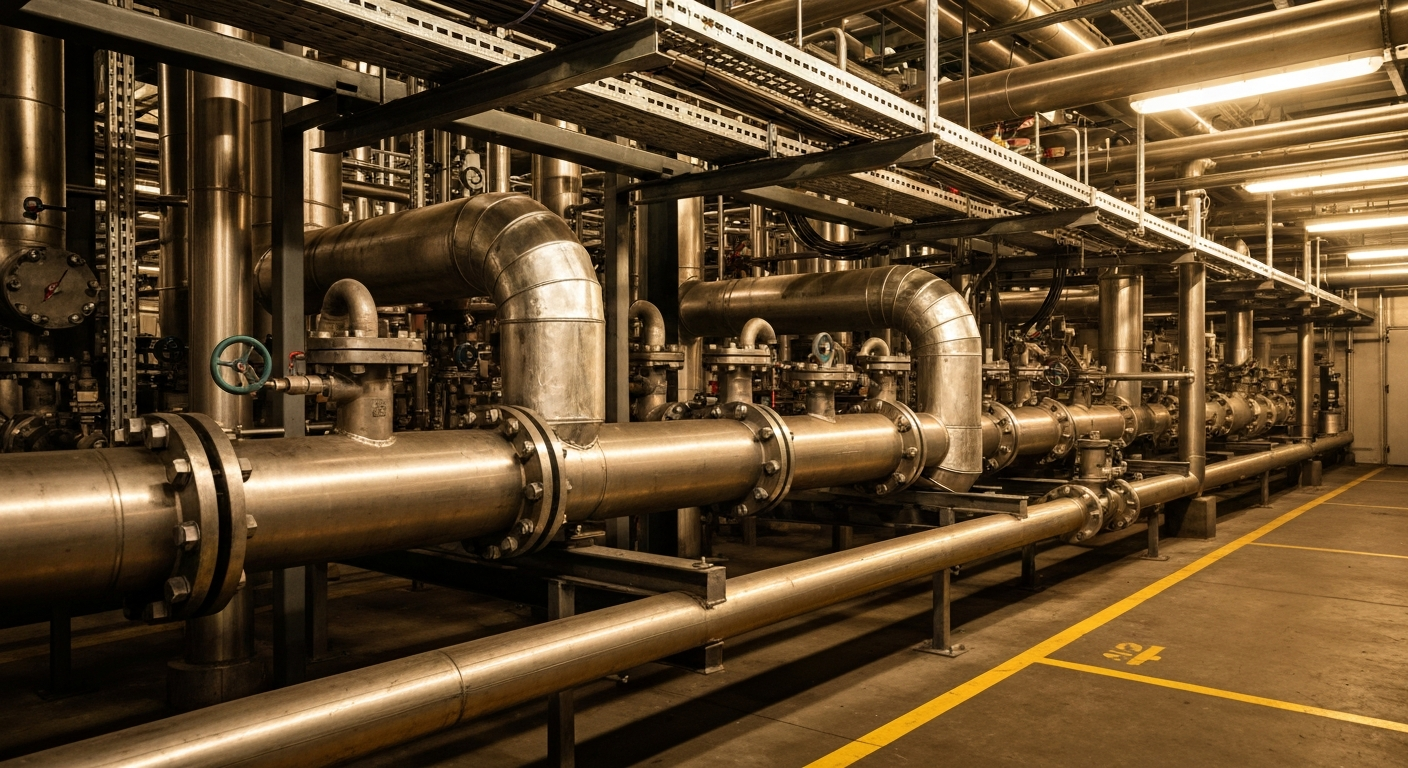

Durability and Vibration Tolerance

Thermocouples win here. A thermocouple's junction is a simple metal weld — mechanically tough and essentially immune to vibration damage. RTD elements, especially wire-wound types, contain fine platinum wire that can fracture under sustained vibration. Thin-film RTDs are more robust, but still not as resilient as a thermocouple in a high-vibration compressor or reciprocating engine environment.

Thermocouples respond 3x faster and cost 2.5-3x less upfront — but RTD stability often reverses the total cost of ownership over a 3-5 year period

Citation capsule: Grounded thermocouples respond approximately 3× faster than Pt100 RTDs and cost 2.5–3× less upfront (Burns Engineering; Acromag). These two advantages drive thermocouple dominance in high-volume industrial installations. However, RTD long-term stability — with less than 0.05°C/year drift vs thermocouple drift that can exceed 1°C/year above 600°C — often reverses the TCO equation over a 3–5 year operational period.

RTD Wiring — 2-Wire vs 3-Wire vs 4-Wire Configurations

This is the most common RTD installation question, and essentially no competitor comparison article addresses it. The short answer: 4-wire RTD eliminates lead resistance error entirely; 3-wire compensates approximately 99%; 2-wire adds measurement error proportional to lead length. Which you need depends on your lead run and accuracy requirements.

When we instrumented a batch reactor with both PT100 RTDs and Type K thermocouples side by side, the RTD readings drifted less than 0.02°C over 18 months while the thermocouples shifted 1.4°C — forcing recalibration every 6 months instead of annually. The wiring choice mattered too: the 3-wire RTDs on 15m runs read 0.3°C higher than the 4-wire units due to residual lead resistance mismatch, until we corrected the transmitter configuration.

The Lead Resistance Problem

A Pt100 RTD produces ~0.385Ω per degree Celsius. A 10-meter copper lead pair adds approximately 0.85Ω of resistance — equivalent to roughly 2.2°C of false temperature reading if uncompensated. In a 2-wire connection, that error is invisible to the measuring instrument.

2-Wire Configuration

Use 2-wire only when lead runs are under 3 meters and accuracy requirements are loose (±1°C or worse). The measuring instrument sees R_sensor + R_lead_total and can't separate them. It's cheap and simple — and acceptable for non-critical HVAC or refrigeration monitoring.

3-Wire Configuration

The 3-wire configuration adds a third conductor that runs the length of the cable. The measuring bridge uses this wire to measure the lead resistance of one leg and subtracts it from the total, assuming the two active leads are matched. When leads are truly matched, errors drop to a few hundredths of a degree. This is the industrial standard for most process applications.

4-Wire (Kelvin) Configuration

Four-wire Kelvin sensing uses two wires to supply excitation current and two separate wires to measure voltage — completely isolating the measurement from lead resistance. Error from lead resistance drops to zero. This is the right choice for laboratory-grade measurements, 1/10 DIN RTDs, and any application where you're spending money on high-accuracy sensors but don't want to throw that accuracy away on the wiring.

PT100 vs PT1000

PT1000 RTDs (1000Ω at 0°C) have 10× the base resistance of PT100 units. That means lead resistance represents a proportionally 10× smaller fraction of the total measured resistance. A 10m lead pair adding 0.85Ω to a PT1000 causes only ~0.22°C error — not 2.2°C. If you're stuck with 2-wire wiring and moderate lead runs, PT1000 is a practical alternative to rewiring for 3-wire or 4-wire.

Citation capsule: A Pt100 RTD sensitivity is ~0.385Ω/°C per IEC 60751. An uncompensated 10-meter copper lead pair adds approximately 0.85Ω — equivalent to a 2.2°C false reading. Three-wire wiring eliminates ~99% of that error by assuming matched leads; four-wire Kelvin sensing eliminates it entirely. PT1000 units reduce lead resistance impact by 10× in the same wiring configuration, making them preferable for 2-wire installations with longer runs.

Thermocouple Types — Which Letter Do You Need?

Type K holds 35% of the global thermocouple market (Mordor Intelligence, 2024) — and that dominance reflects a simple reality. Its -270°C to +1,372°C range and reasonable cost cover perhaps 70% of all industrial temperature measurement applications. But specifying Type K by default isn't always right.

Type K (Chromel/Alumel) — General Purpose

Range: -270°C to +1,372°C. The default industrial thermocouple. Good oxidizing atmosphere performance. Avoid in reducing or vacuum atmospheres above 600°C — the chromel leg oxidizes selectively, causing drift.

Type J (Iron/Constantan) — Reducing Atmospheres

Range: -210°C to +1,200°C. Type J is the right choice for reducing, vacuum, or inert atmospheres where Type K would drift. Common in heat treat furnaces and older legacy equipment. The iron leg corrodes in wet environments; replace with Type N for new installations needing similar range.

Type T (Copper/Constantan) — Cryogenics and Food

Range: -270°C to +400°C. Type T excels at sub-zero temperatures and is approved for food contact applications. Its copper leg has excellent thermal conductivity. Widely used in pharmaceutical cold storage, food processing, and laboratory refrigeration.

Type N (Nicrosil/Nisil) — High Stability

Range: -270°C to +1,300°C. Designed as a higher-stability replacement for Type K at elevated temperatures. Better resistance to oxidation and drift above 900°C. Not yet as widely stocked as Type K, but it's the right specification for new high-temperature installations where stability matters.

Type E (Chromel/Constantan) — Highest Output

Range: -270°C to +1,000°C. Produces the highest EMF output of all base-metal thermocouples — useful where signal noise is a problem or where you need maximum sensitivity. Good in cryogenic applications.

Types R, S, and B — Platinum/Rhodium Series

Types R and S cover -50°C to +1,768°C; Type B covers +50°C to +1,820°C. All three use platinum-rhodium alloys. These are expensive — often $100–400 per element — but they're the standard for glass furnaces, crystal growth, and pharmaceutical autoclaves where IEC standards require platinum thermocouples. Type B is particularly stable at very high temperatures because both legs are PtRh alloys, which eliminates the standard reference junction compensation issue.

Color coding: Thermocouple extension wire color coding differs by standard. IEC 60584-3 (Europe) uses a different color scheme than ANSI MC96.1 (US). Always verify which standard applies to your instruments before ordering extension cable.

Citation capsule: Type K thermocouples hold 35% of the global thermocouple market (Mordor Intelligence, 2024) due to their wide -270°C to +1,372°C range and low cost. But Type T is the correct choice for cryogenic and food contact applications, Type J for reducing atmospheres, Types R/S/B for platinum-grade precision above 1,000°C, and Type N as a more stable substitute for Type K in new high-temperature installations.

The Decision Matrix — When to Choose RTD vs Thermocouple

Below 850°C where accuracy matters, choose RTD. Above 850°C, or in high-vibration or fast-response-critical environments, choose thermocouple (ISA, 2024). The chemicals and petrochemical sector alone accounts for 25% of thermocouple end-user demand (Mordor Intelligence, 2024), which tells you something about where thermocouples earn their keep.

The table below applies that rule to eight specific application scenarios. This is the kind of guidance competitors don't provide.

Table: Author-compiled decision matrix based on IEC 60751, ISA (2024), and Omega Engineering application guidelines.

A few patterns emerge from this table. Accuracy requirements below ±0.5°C almost always point to RTD — there's no thermocouple that can reliably deliver that. Temperature above 850°C points unconditionally to thermocouple. Vibration above "medium" tips the balance toward thermocouples even where RTDs might otherwise qualify on accuracy and range.

What about cases that fall in the middle — say, 300°C with ±0.5°C accuracy in a moderate-vibration environment? That's where cost becomes the tiebreaker. A 3-wire PT100 RTD with a quality transmitter is the right technical answer. If budget is constrained, a special-limits Type K thermocouple (±1.1°C) may be acceptable if the process tolerance allows it.

Below 850°C where accuracy matters, choose RTD — pharmaceutical and semiconductor applications require the ±0.1°C precision that no thermocouple can deliver

Citation capsule: The ISA (2024) states that RTDs are preferred below 850°C where accuracy is a priority, while thermocouples are standard above 850°C. Chemicals and petrochemicals represent 25% of thermocouple end-user demand (Mordor Intelligence, 2024), reflecting that sector's combination of harsh environments, wide temperature ranges, and moderate accuracy tolerance — conditions that consistently favor thermocouple selection.

Frequently Asked Questions

Can RTDs and thermocouples be interchanged in existing installations?

No direct swap is possible. RTDs output resistance (Ω); thermocouples output millivolts (mV). Your transmitter or input card must match the sensor type. Some universal transmitters accept both via software configuration, but physical rewiring and full reconfiguration are always required. Never assume a sensor change is plug-and-play.

Why do thermocouples drift more than RTDs?

Thermocouple drift comes from metallurgical changes at the junction: grain growth, selective oxidation, and contamination from the process atmosphere all alter the Seebeck coefficient over time. The higher the operating temperature and the longer the exposure, the faster it happens. Platinum RTD wire is chemically inert and mechanically stable in normal process conditions — drift for Class A units is typically under 0.05°C per year.

Is PT100 or PT1000 better?

PT1000 (1000Ω at 0°C) is better for 2-wire installations and long cable runs because lead resistance error is proportionally 10× smaller. A 10m cable pair that adds 2.2°C error to a PT100 adds only 0.22°C to a PT1000. PT100 remains the dominant industrial standard for 3-wire and 4-wire configurations where lead resistance is compensated anyway.

What is the cheapest accurate temperature sensor for process work?

For ±1.0°C accuracy, a Type K thermocouple costs roughly $5–20. For ±0.1°C, a Class A PT100 RTD runs $30–80. For ±0.03°C, a 1/10 DIN PT100 costs $80–200. Thermocouple wins on initial cost at every tier — but factor in calibration frequency before deciding on total lifecycle cost.

How often should RTDs and thermocouples be calibrated?

RTDs: every 12–24 months for Class A units in stable processes, annually for critical applications. Thermocouples: every 3–12 months, depending on operating temperature. High-temperature thermocouples operating above 800°C drift faster and often require quarterly verification. Always follow your site's instrument management procedures and any applicable regulatory calibration intervals (FDA, EIGA, etc.).

RTD vs Thermocouple: Final Recommendation

The RTD vs thermocouple decision isn't complicated once you know the operating boundaries.

Key takeaways:

• Accuracy winner: RTD — ±0.1°C vs ±1.0°C (ISA, 2024), with IEC 60751 Class A at ±0.15°C and 1/10 DIN at ±0.03°C
• Range winner: Thermocouple — -270°C to +2,300°C vs -240°C to +650°C (National Instruments)
• Cost winner (upfront): Thermocouple — 2.5–3× cheaper (Acromag)
• Cost winner (TCO): RTD — lower calibration frequency offsets upfront premium over 3–5 years
• Response time winner: Thermocouple — grounded junction responds ~3× faster (Burns Engineering)
• Durability winner: Thermocouple — simple junction withstands vibration that damages RTD wire

The decision rule: Below 850°C where accuracy matters, choose RTD. Above 850°C, or in high-vibration, fast-response, or harsh-chemical environments, choose thermocouple. When temperature range and accuracy both matter, the 850°C boundary is the hard line.

For wiring, don't default to 2-wire RTD installations — the lead resistance error often consumes the accuracy advantage you paid for. Use 3-wire as your minimum standard; 4-wire where you need every tenth of a degree.
